Configurator

Choose your sensors, accessories & kits.

More info

Sensors

Long range radar sensors

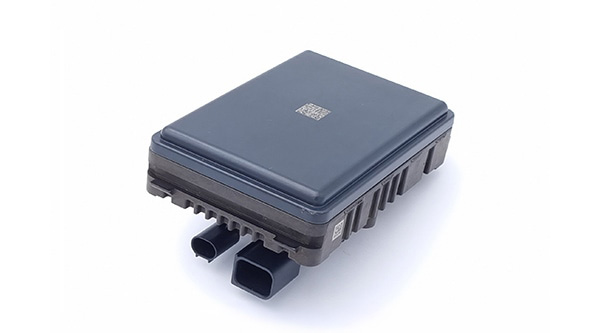

ARS 548 RDI (0.2 to 1514 m) Long Range Radar Sensor 77 GHz
With BroadR-Reach Ethernet interface for Industrial Radar Sensors. Output of 4D detections via RDI (Radar Detection Interface) and tracked objects, incl. 3 mounted bolt screws on the rear plate.

ARS 408-21 (0.2 to 260 m) long range radar sensor 77 GHz premium
With standard CAN protocol for Industrial Radar Sensors. Configuration options for: standard / high sensitivity, objects / cluster output, 8 different sensor ID’s, up to 8 warning regions.

ARS 408-21 (0.2 to 260 m) long range radar sensor 77 GHz premium
With standard CAN protocol for Industrial Radar Sensors. Configuration options for: standard / high sensitivity, objects / cluster output, 8 different sensor ID’s, up to 8 warning regions.

ARS 430 FM (0.2 to 1200 m) Long Range Radar Sensor 77 GHz
With CAN interface and specific data protocol, object output, auto calibration, flexible mounting, 8 different sensor ID's, up to 8 polygon zones. Configuration of max. distance between 250 to 1200 m with reduced detection performance.

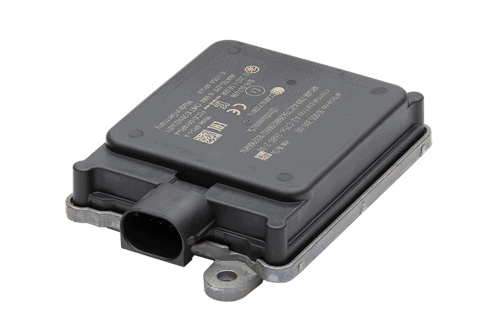

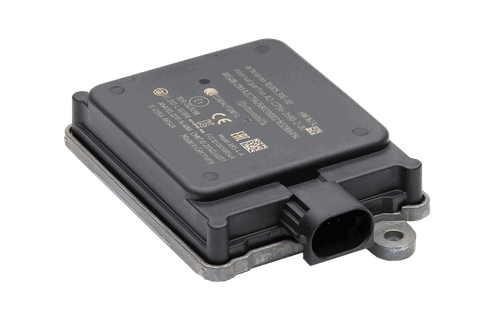

ARS 404-21 (0.2 to 190m) Long Range Radar Sensor 77 GHz Entry
With standard CAN protocol for Industrial Radar Sensors. Configuration options for: standard / high sensivity, objects / cluster output, 8 different sensor ID's, up to 8 warning regions.

ARS 404-21 SC1 (0.2 to 1000 m Extended Range) Long Range Radar Sensor 77 GHz Entry
With standard CAN protocol for Industrial Radar Sensors. Configuration options for: standard / high sensitivity, objects / cluster output, 8 different sensor ID’s, up to 8 warning regions. Configuration of max. distance between 190 to 1000 m with reduced detection performance.

Short range radar sensors

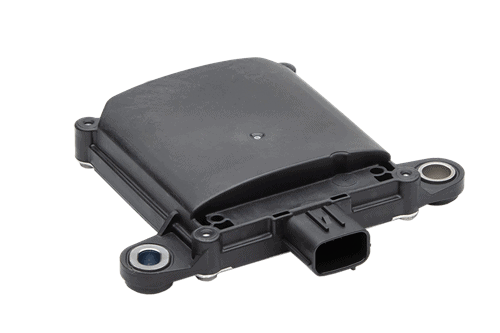

SRR 308-21 (0.3 to 95 m) Short Range Radar Sensor 24 GHz
With standard CAN protocol for Industrial Radar Sensors. Configuration options for: standard / high sensitivity, objects / cluster output, 8 different sensor ID’s, up to 8 warning regions.

SRR 308-21 SC2 (0.3 to 480 m) Short Range Radar Sensor 24 GHz
With standard CAN protocol for Industrial Radar Sensors. Configuration options for: standard / high sensitivity, objects / cluster output, 8 different sensor ID’s, up to 8 warning regions. Configuration of max. distance between 95 to 480 m with reduced detection performance. Optimized object tracking for traffic monitoring.

SRR 308-21 SC1 (0.3 to 192 m) Short Range Radar Sensor 24 GHz
With standard CAN protocol for Industrial Radar Sensors. Configuration options for: standard / high sensitivity, objects / cluster output, 8 different sensor ID’s, up to 8 warning regions. Configuration of max. distance between 95 to 192 m with reduced detection performance.

SRR 308 RA (0.3 to 480 m) Short Range Radar Sensor 24 GHz
With CAN interface and specific data protocol for height over ground estimation. Configurator of max. distance between 95 to 480 m with reduced estimation performance. 

Accessories

Accessories for ARS 548 RDI Sensors

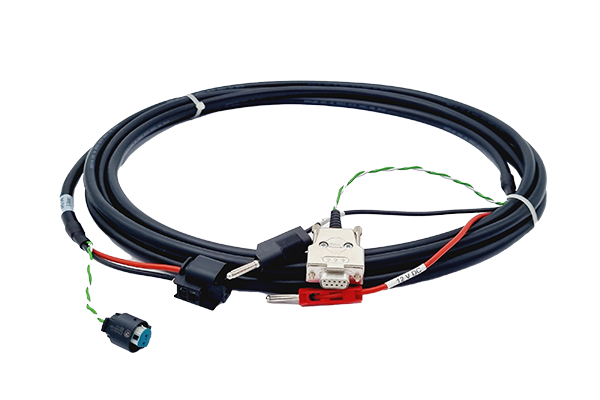

Cable 5m for ARS 548 RDI
Cable ARS 548 RDI, 5 m, power supply with 6 pole main connector and Ethernet with 2 pole connector on radar side.

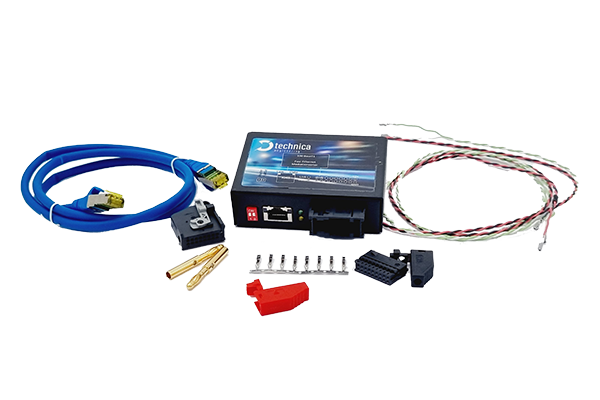

100BASE-T1 Media Converter for ARS 548 RDI
Converts 100BASE-T1 100 MBit/s full duplex 1 x unshielded twisted pair to fast Ethernet 100BASETX full duplex 2 x shielded or unshielded twisted pair, including cable set.

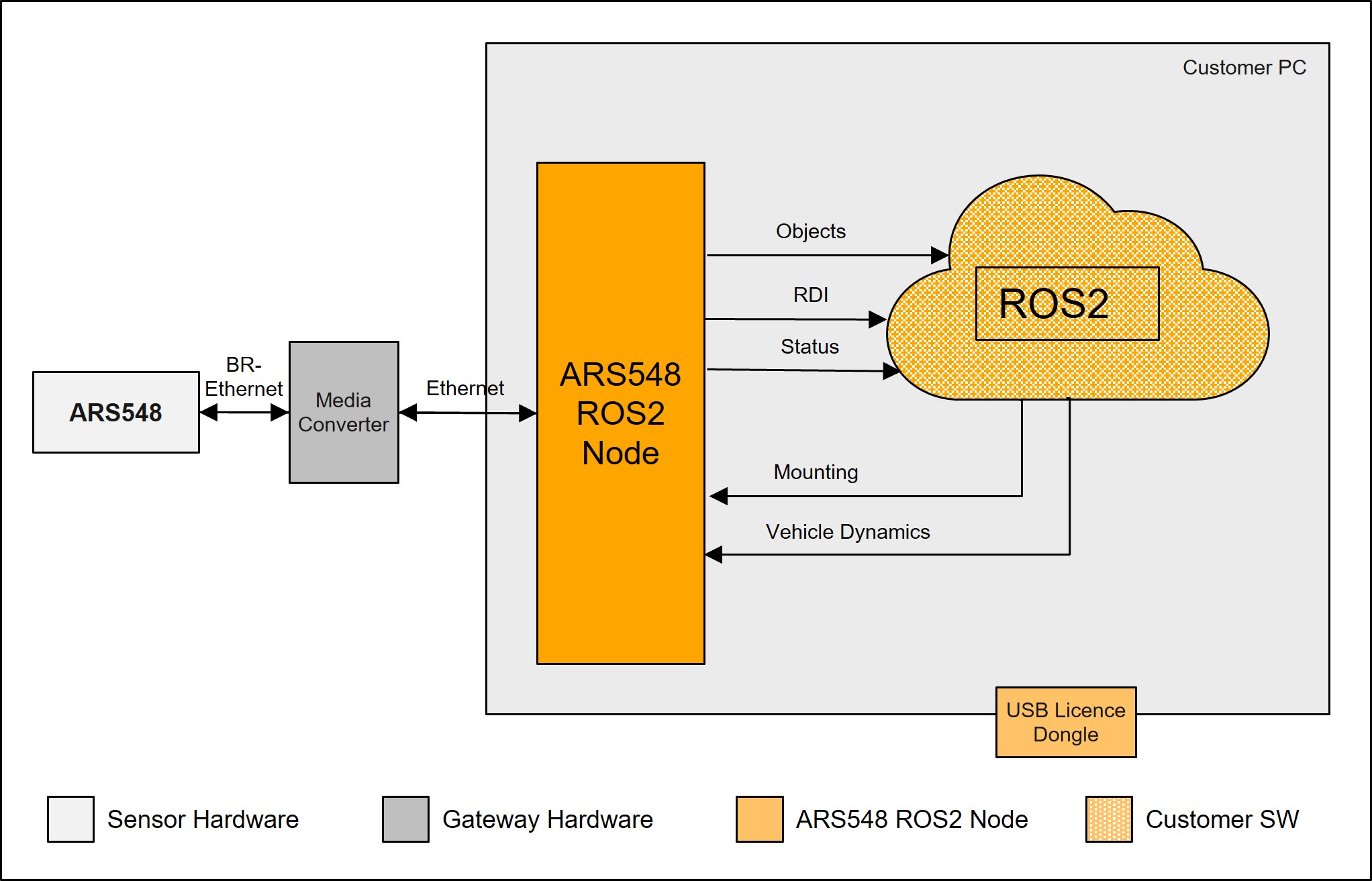

ARS 548 ROS2 Node
The ARS548 ROS2 SW Package incl. Documentation and USB Licence Dongle provides easy access to the BR-Ethernet input and output data of a single ARS548 radar sensor in standard ROS2 message format. The node establishes a connection to the ARS548 and publishes tracked objects, detections (RDI) and status of the radar sensor. Subscription of vehicle dynamic input signals. Sensor configuration via ROS messages and ROS2 launch file. The usage of the node is secured by a Licence Dongle.

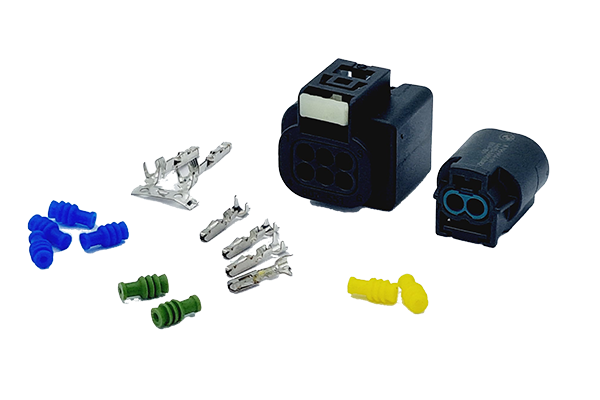

Connector Kit for ARS 548 RDI
6 pole main connector and 2 pole Ethernet connector with pins and sealing.

Accessories for ARS 40X and SRR 30X Sensors

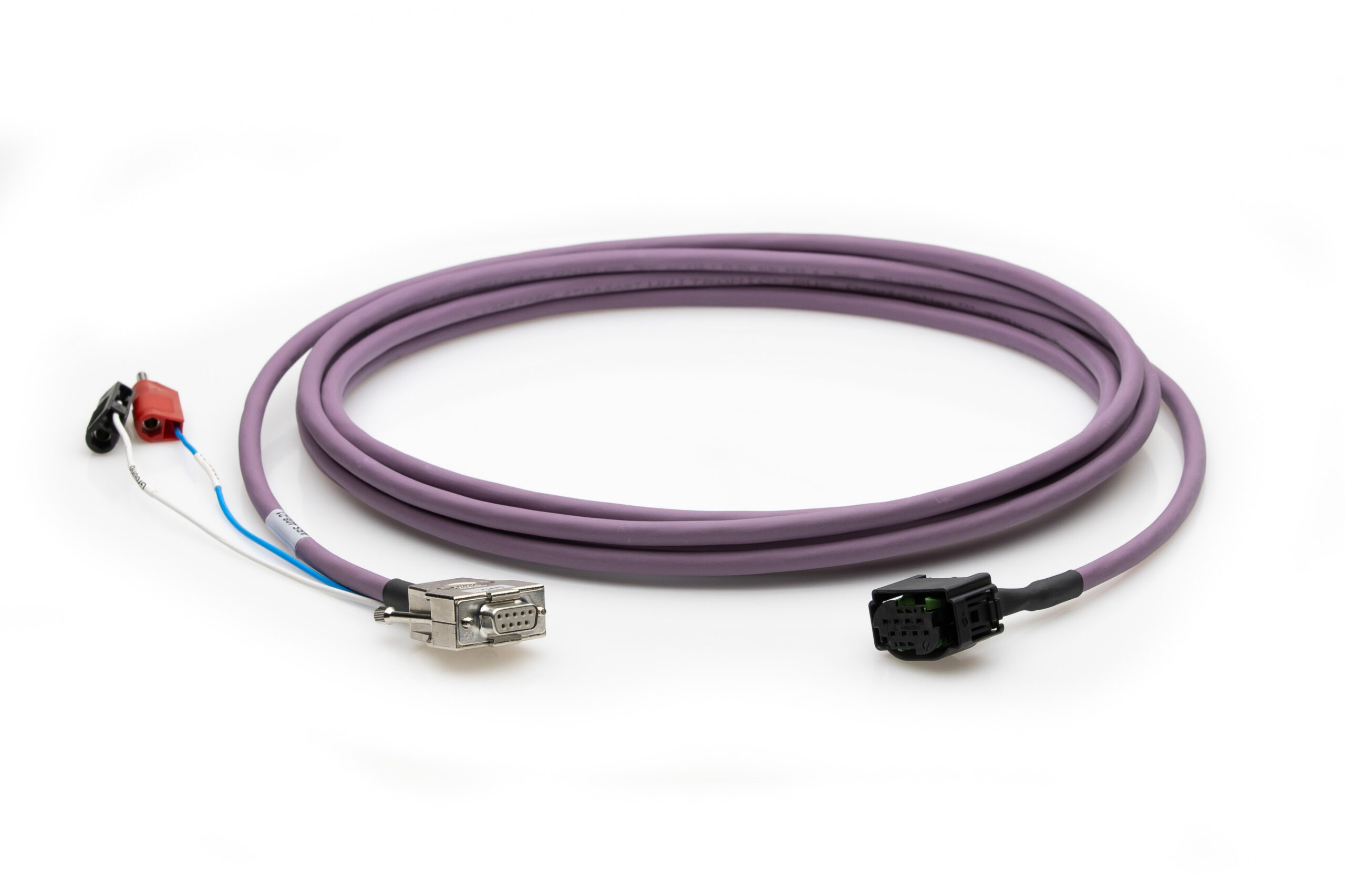

Cable 5m for ARS 408
Cable ARS 408, 5 m, power supply and CAN bus, with ARS 408 connector (without termination).

Cable 10m for ARS 408
Cable ARS 408, 10 m, power supply and CAN bus, with ARS 408 connector (without termination).

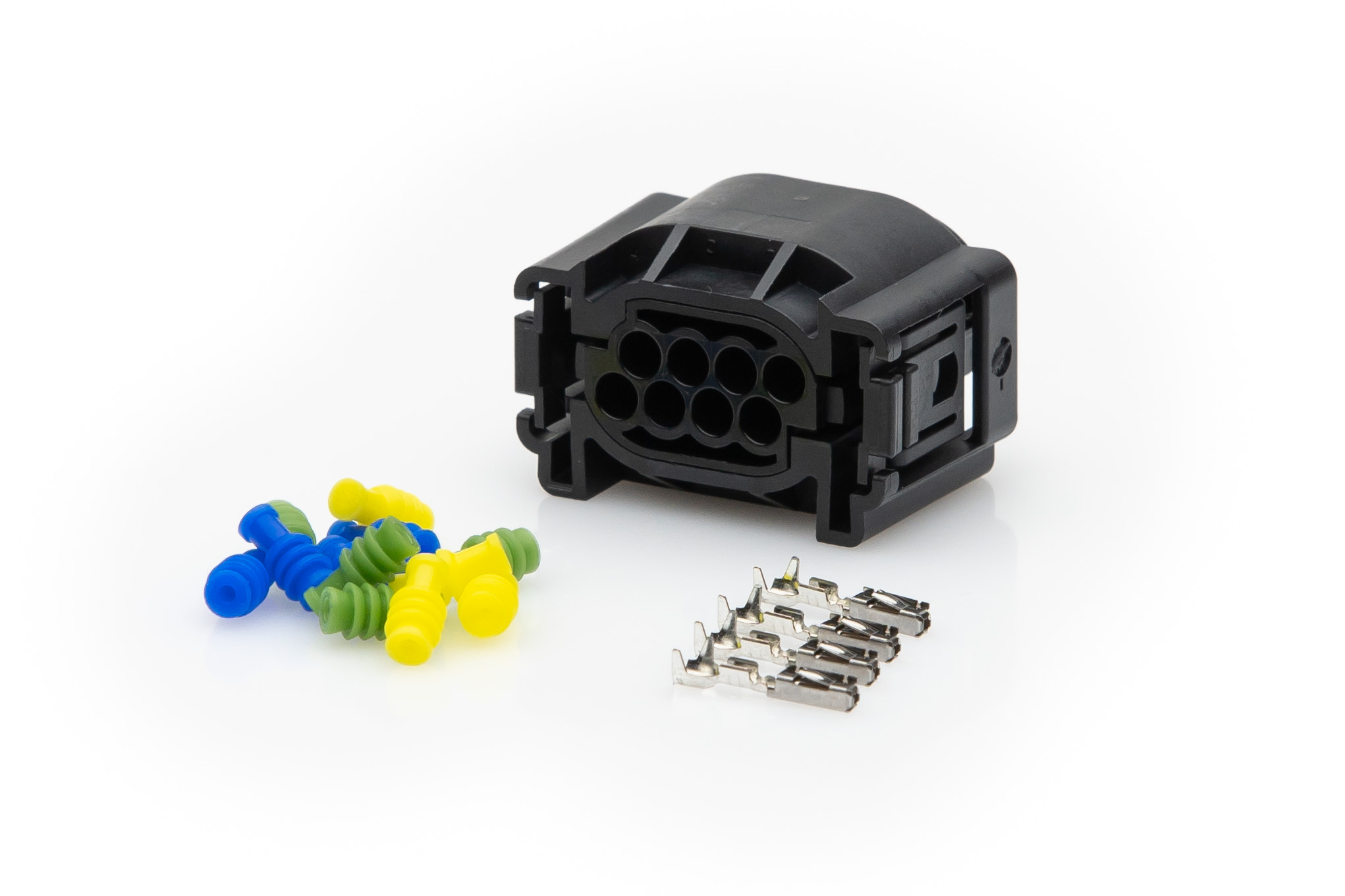

Connector Kit for ARS 408
8 pole connector with pins and sealing.

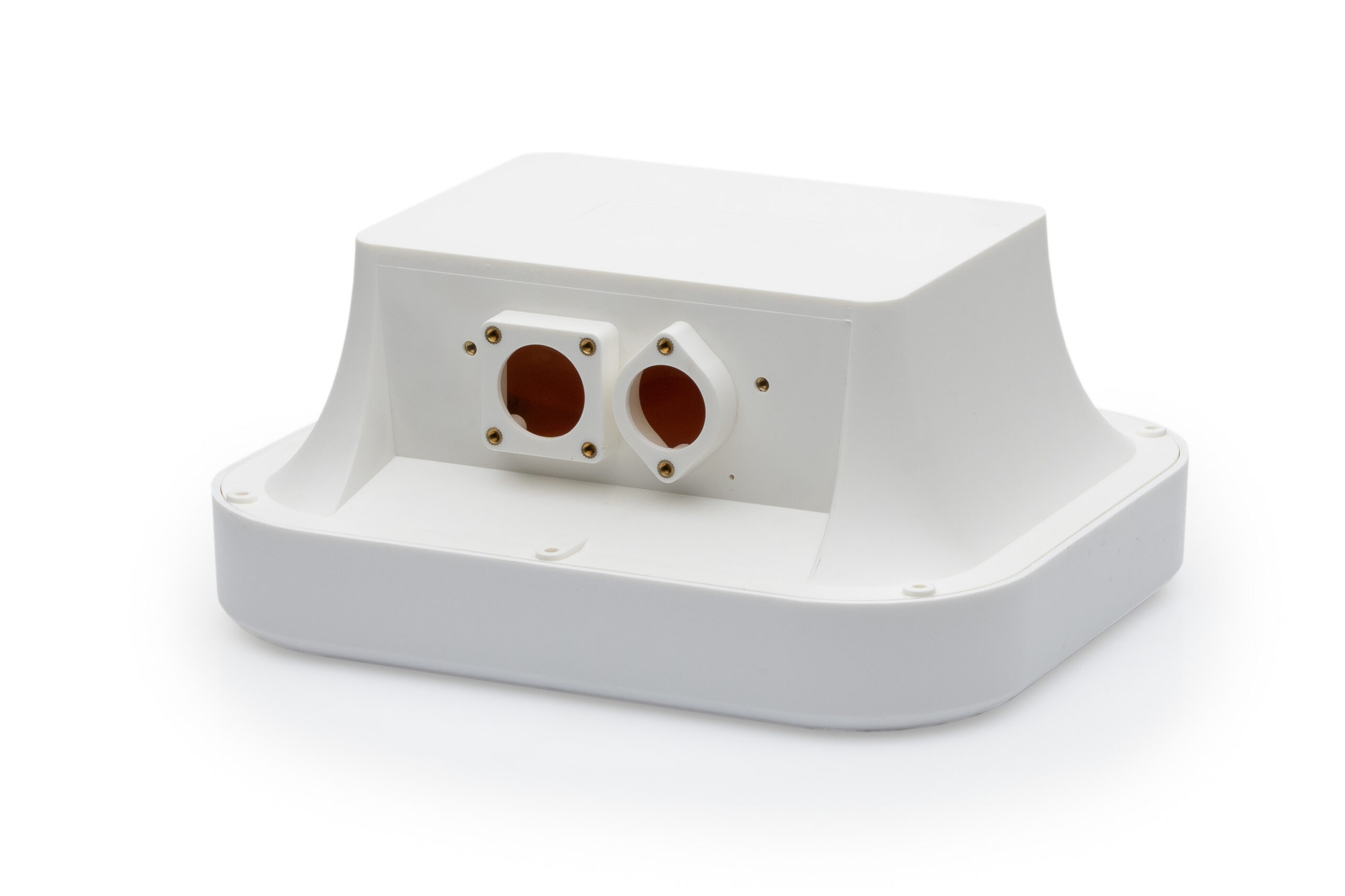

Housing for ARS 408
Poly Carbonate radome housing for ARS 408, including connectors and without wiring.

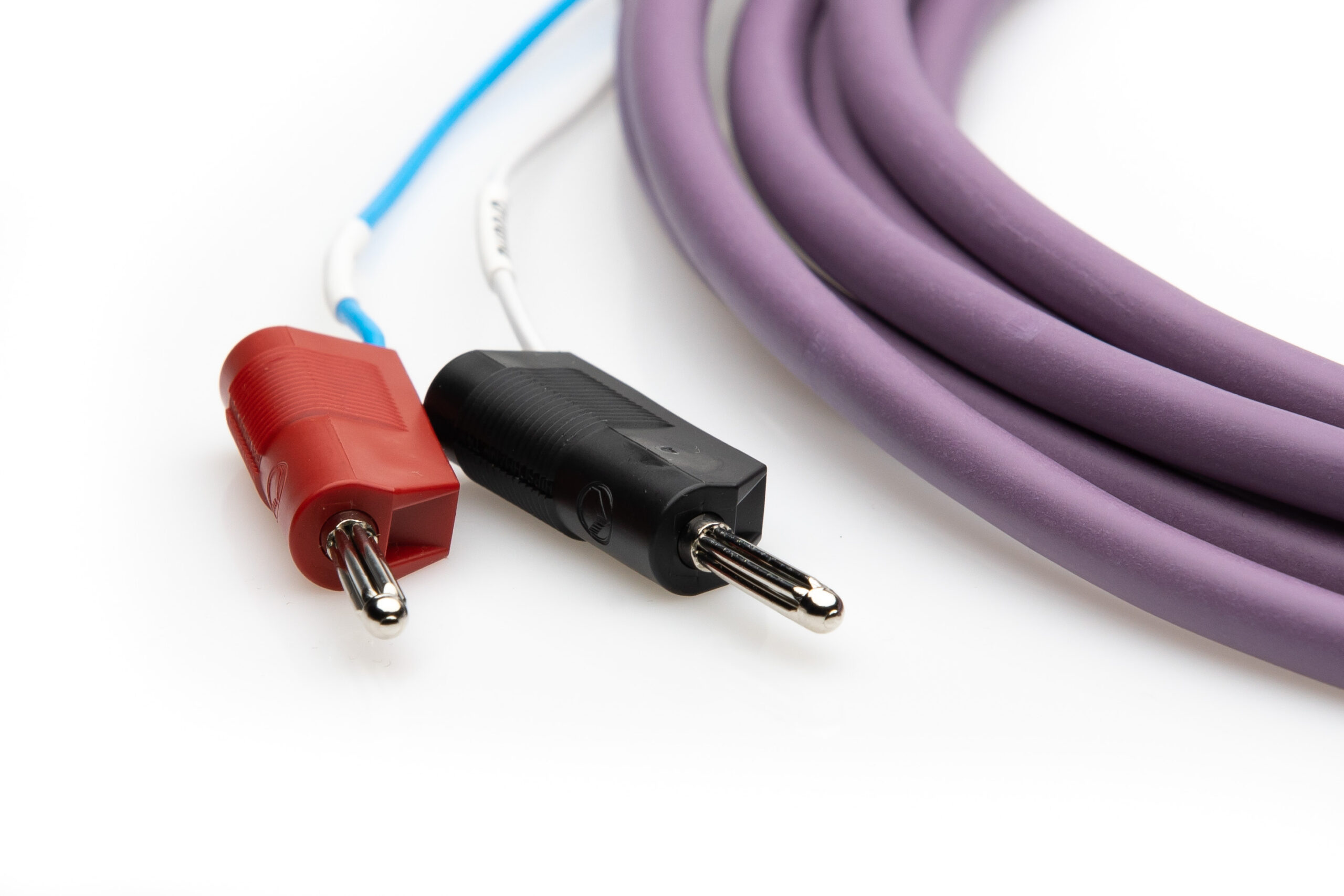

Cable 5m for SRR 308
Cable SRR 308, 5 m, power supply and CAN bus, with SRR 308 connector (without termination).

Cable 10m for SRR 308
Cable SRR 308, 10 m, power supply and CAN bus, with SRR 308 connector (without termination).

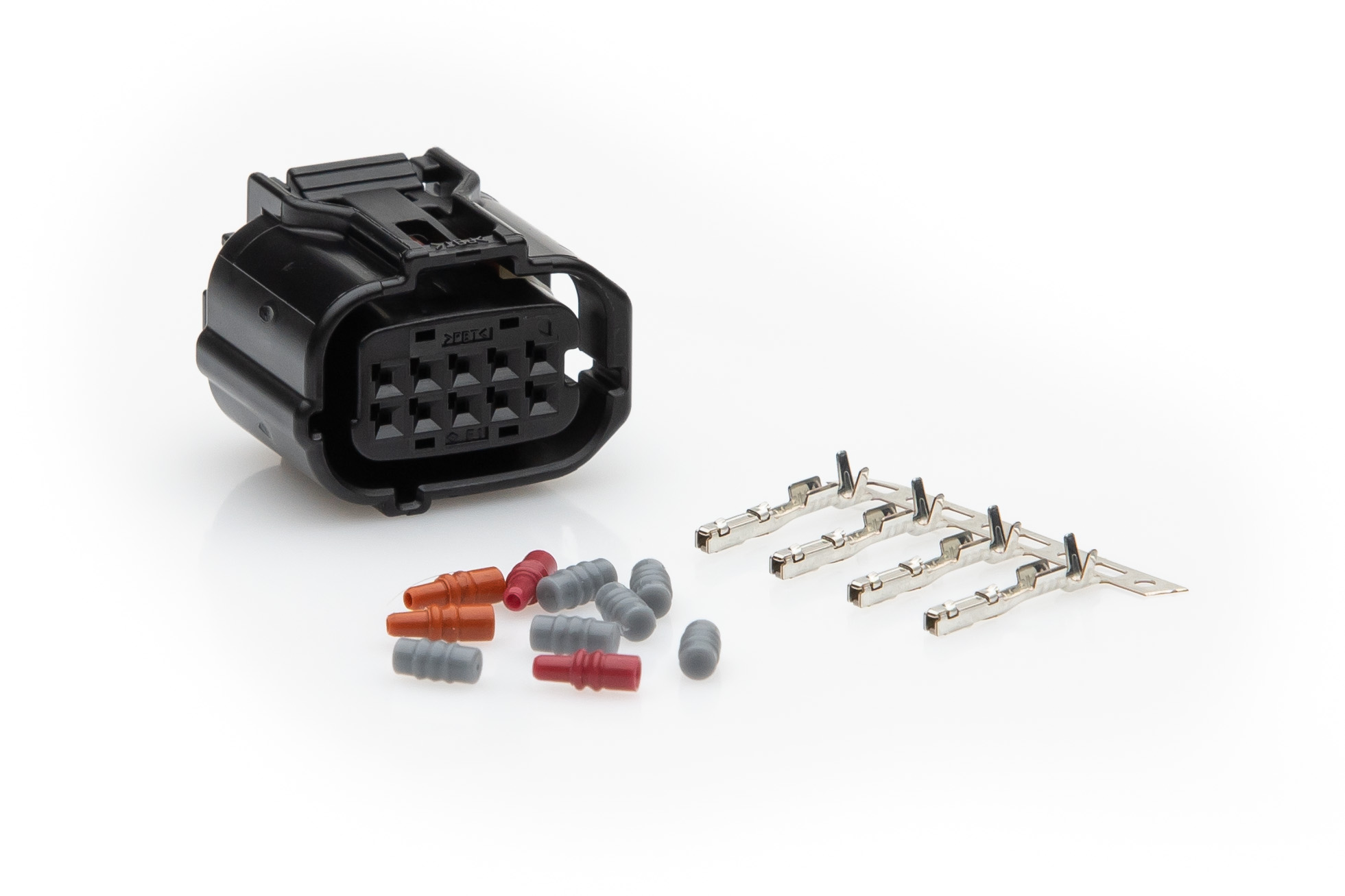

Connector Kit for SRR 308
10 pole connector with pins and sealing.

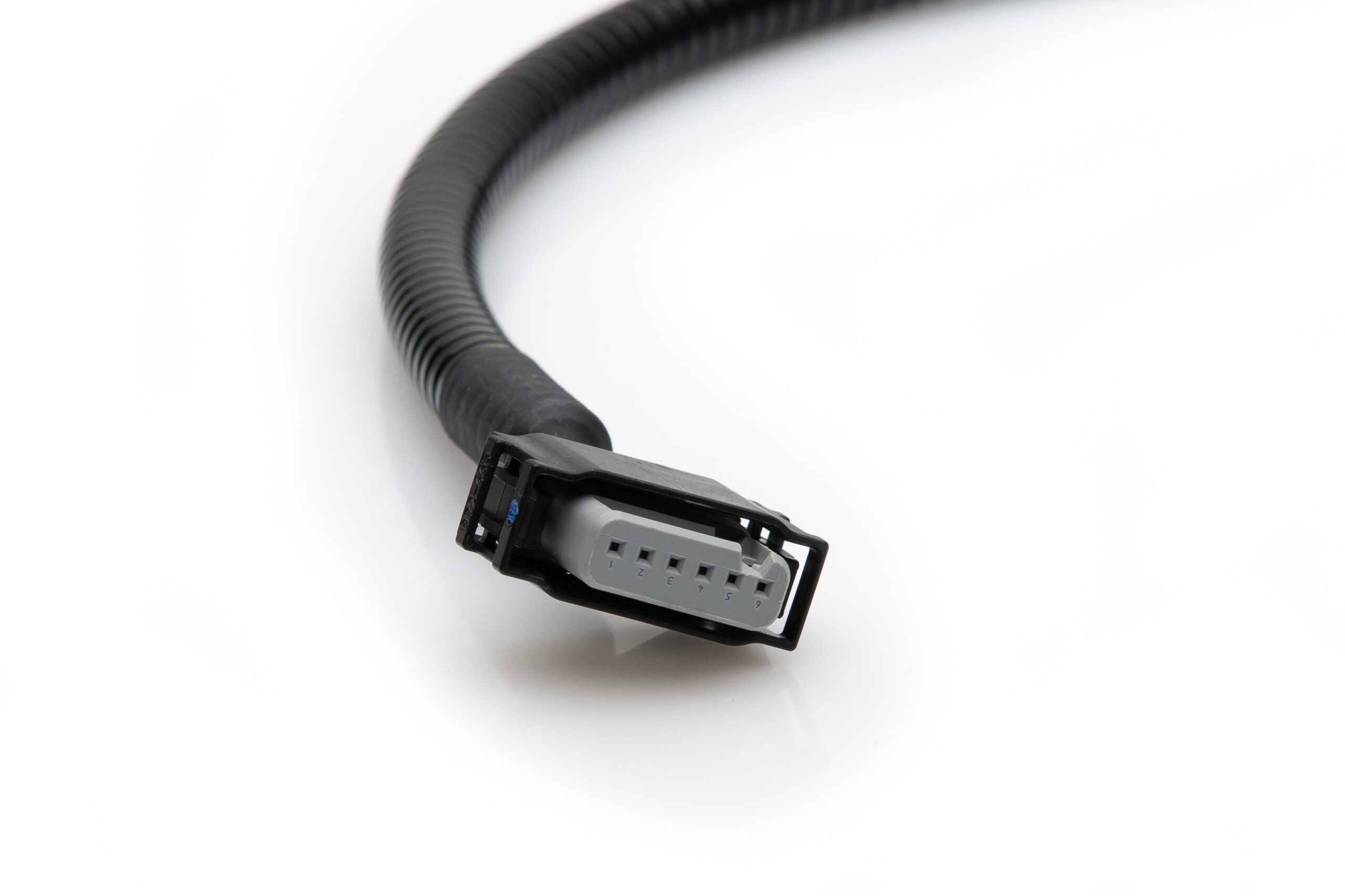

Set of Cables 5.3 m for ARS 404
Power supply and CAN bus, with ARS 408 connector (without termination) and additional 0.3 m adapter cable for ARS 404 radar.

Set of Cables 10.3 m for ARS 404
Power supply and CAN bus, with ARS 408 connector (without termination) and additional 0.3 m adapter cable for ARS 404 radar.

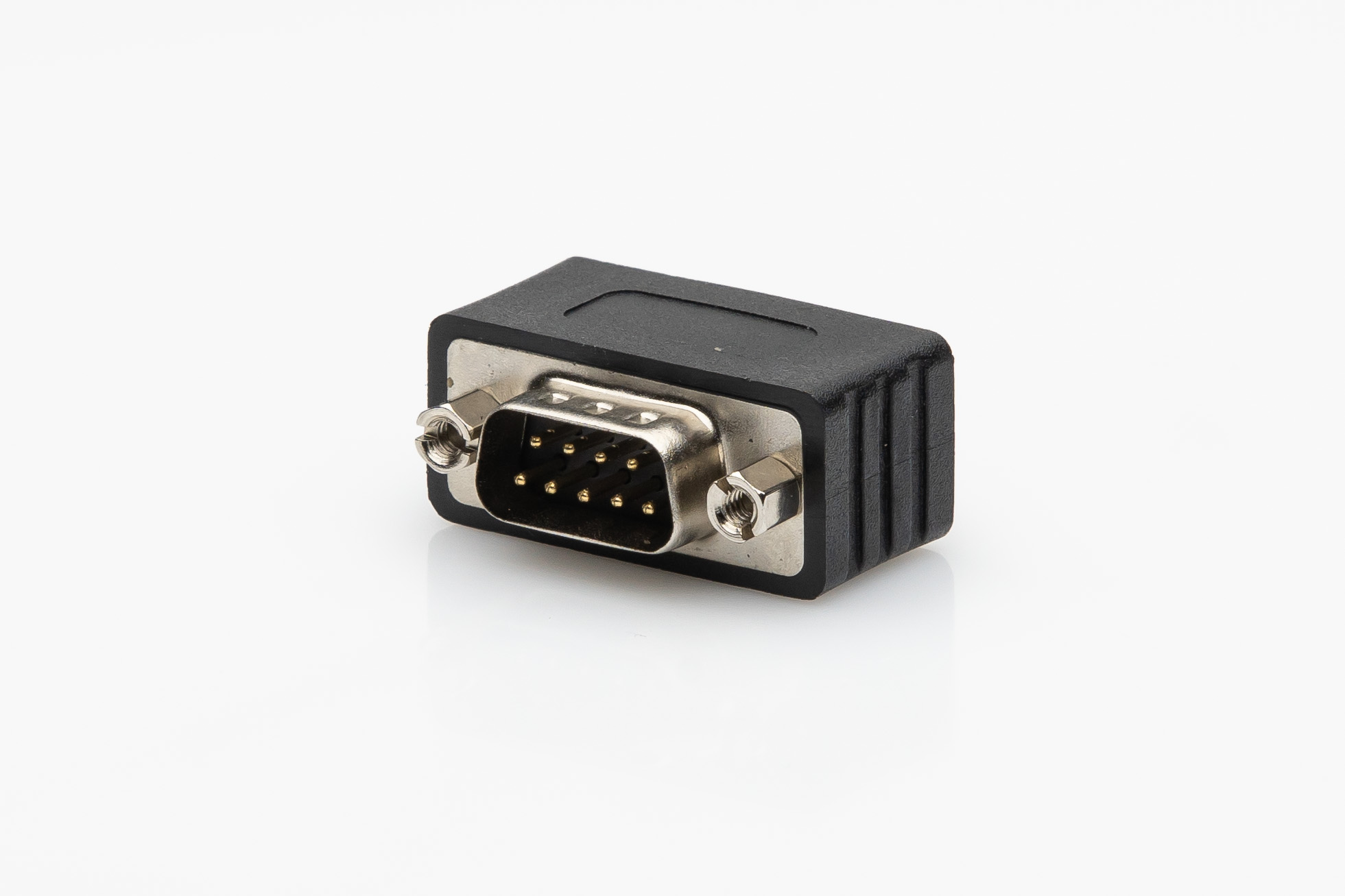

CAN Termination SUB-D 120 ohms
CAN termination 120 ohms mounted on a 9 pole SUB-D connector PCAN-Term (female / male), useable for the radar PLC, adapter cable or other termination for the CAN bus of the radar sensors.

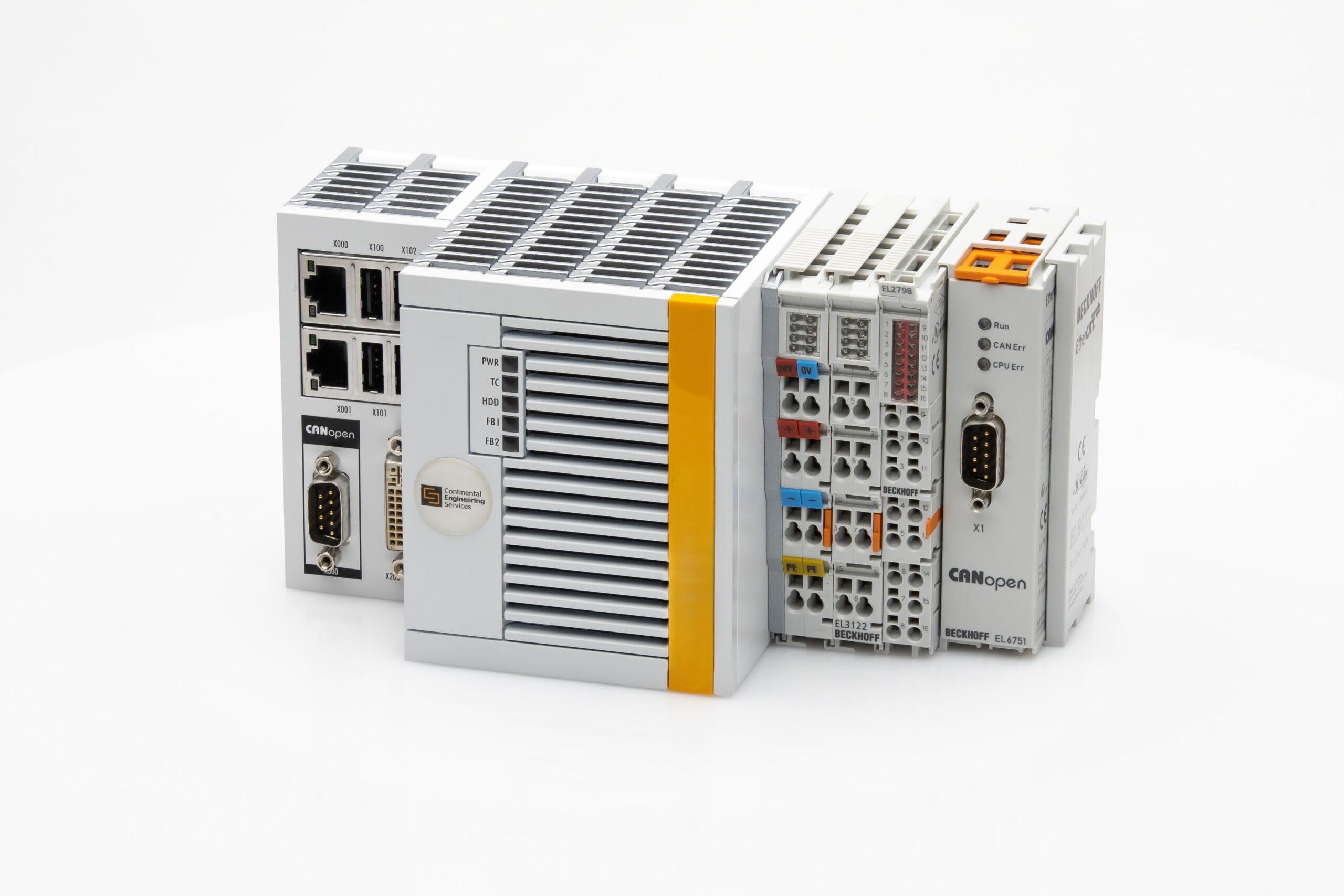

Radar Programmable Logic Controller (PLC) including 2 x CAN termination SUB-D 120 ohms
Professional Beckhoff PLC, 2-channel version for two different or same radar sensors simultaneously, with CAN open, DVI connection, Ethernet and USB connection, 8 relay outputs, 2 analog inputs, flash memory card 8 GB, internal main memory 4 GB DDR3 RAM, incl. Continental Radar PLC Software for visualization with a customer monitor, filter and some parameter setting, using a data base, in combination with radar sensors ARS 40X and SRR 30X via CAN bus; operating voltage 24 V DC, excluding power supply unit; including 2 x CAN termination SUB-D 120 ohms (10.005.342-00).

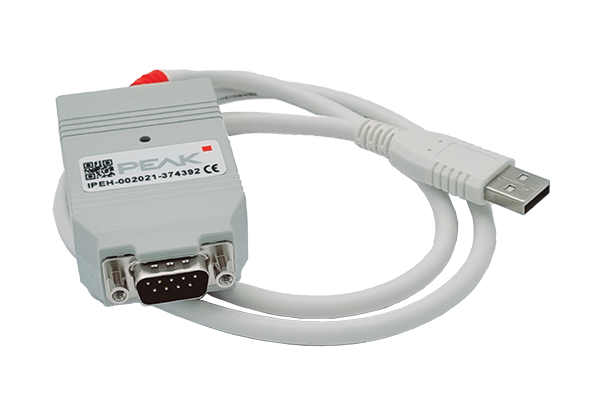

PCAN-USB CAN Interface for USB including CAN termination SUB-D 120 ohms
Includes device drivers for Windows® 11 (64-bit), 10 (32/64-bit), and Linux (32/64-bit), CAN monitor PCAN-View for Windows, programming interface PCAN-Basic for developing applications with CAN connection, programming interfaces for standardized protocols from the automotive sector and 1 x CAN termination SUB-D 120 ohms (10.005.342-00).

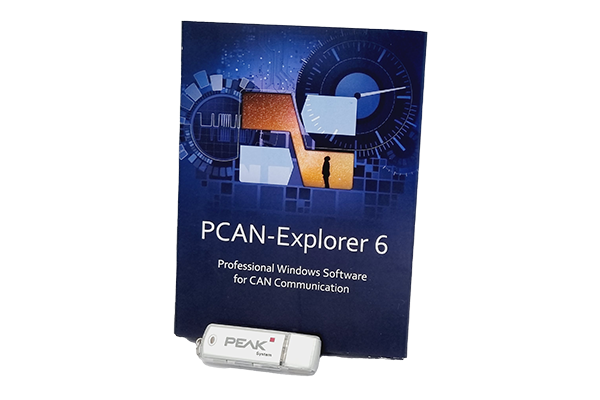

PCAN-USB CAN Interface for USB including PCAN-Explorer 6 Software
Professional Windows® Software to Communicate with CAN and CAN FD Networks (PCAN-USB CAN Interface 10.006.640-00).

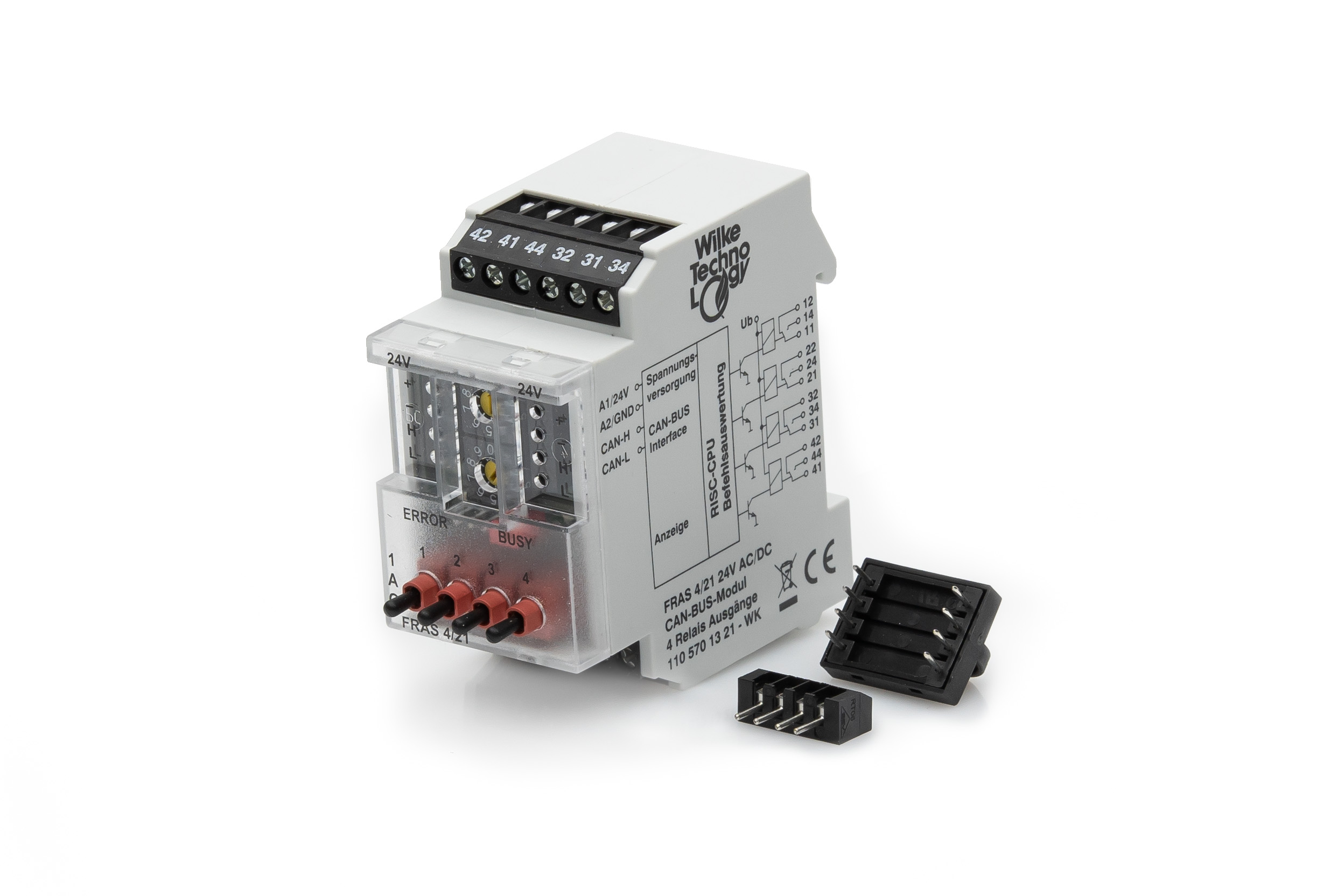

CAN module DV-CANFRAS4-01 including Adapter Cable
CAN module type Wilke DV-CANFRAS4-01 with 4 relay outputs, power supply 24 V DC, pre-configured with adapter cable from Continental radar cable to CAN module (10.005.322-00); including termination with 120 ohms (10.005.342-00).

Kits

Radar Starter Kits

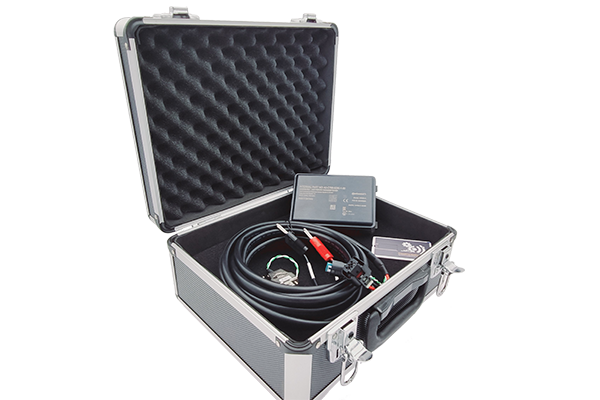

Radar Starter Kit ARS 548RDI
Standard Starter Kit including: One ARS 548 RDI Radar Sensor / Cable 5 m / 100BASE-T1 Media Converter / ARS 548 ROS2 Node.

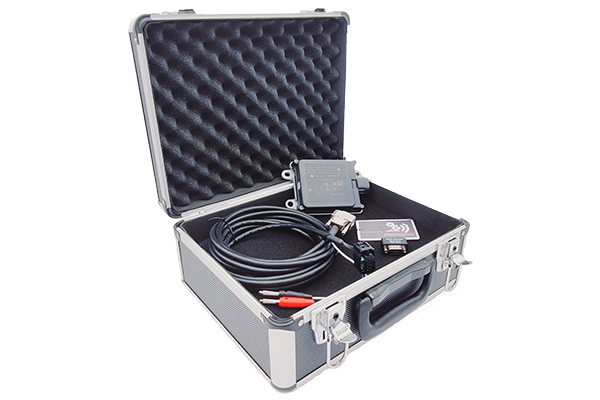

Radar Starter Kit ARS 408
Standard Starter Kit including: One ARS 408-21 Radar Sensor / Cable 5 m / CAN Termination SUB-D 120 ohms - *CAN Interface is required.

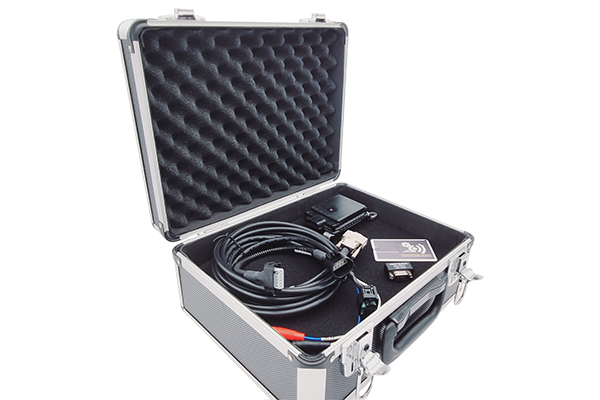

Radar Starter Kit ARS 404
Standard Starter Kit including: One ARS 404-21 Radar Sensor / Cable 5.3 m / CAN termination SUB-D 120 ohms - *CAN Interface is required.

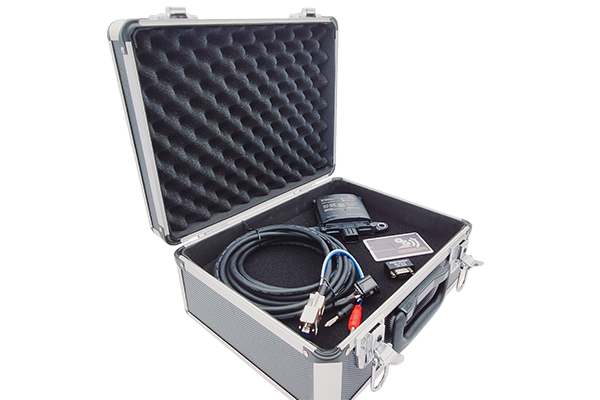

Radar Starter Kit SSR 308
Standard Starter Kit including: One SRR 308-21 Radar Sensor / Cable 5.3 m / CAN termination SUB-D 120 ohms - *CAN Interface is required.
