Body control module
- 44 digital inputs low
- 2 digital inputs high
- 31 analog inputs
- 2 PWM input
- 9 Main power & relay supply lines
- 3 Battery & 2 external GND
- 1x 5V power supply
- 86 outputs including
- Relay outputs
- High side outputs
- Low side outputs
- 3x CAN-FD
- 6x LIN
- Integration of RF receiver and LF
- Antenna management

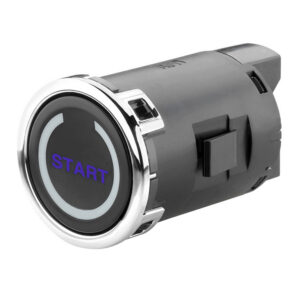

Start/stop button
- Integrated immobilizer coil
- Background illumination (orange/green)
- IP52 protection rating
- Dimensions: Ø35.2mm x 65mm
- Weight: 40g
- Modular design for customizable button styles, symbols, and decorative rings

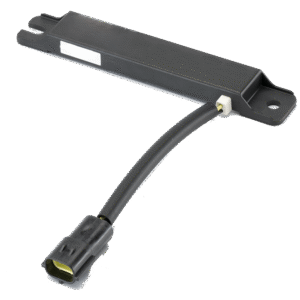

LF antenna
- Excellent interior detection (85–100%)
- Strong exterior range
- Frequency/modulation: 125 kHz / ASK
- IP68 waterproof protection
- Size: 134mm x 42mm x 15.9mm
- Weight: 44g

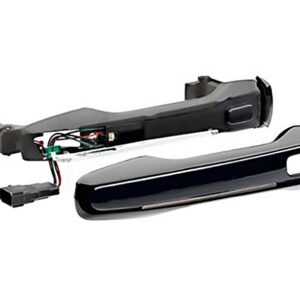

Door handle sensor
- Button switch as lock trigger
- Capa sensor for unlock trigger
- Micro switch for lock/unlock trigger
- Operation voltage: 9V~16V

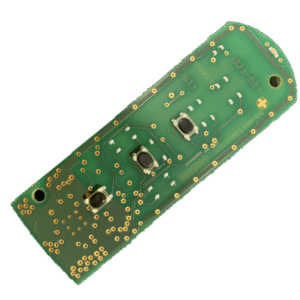

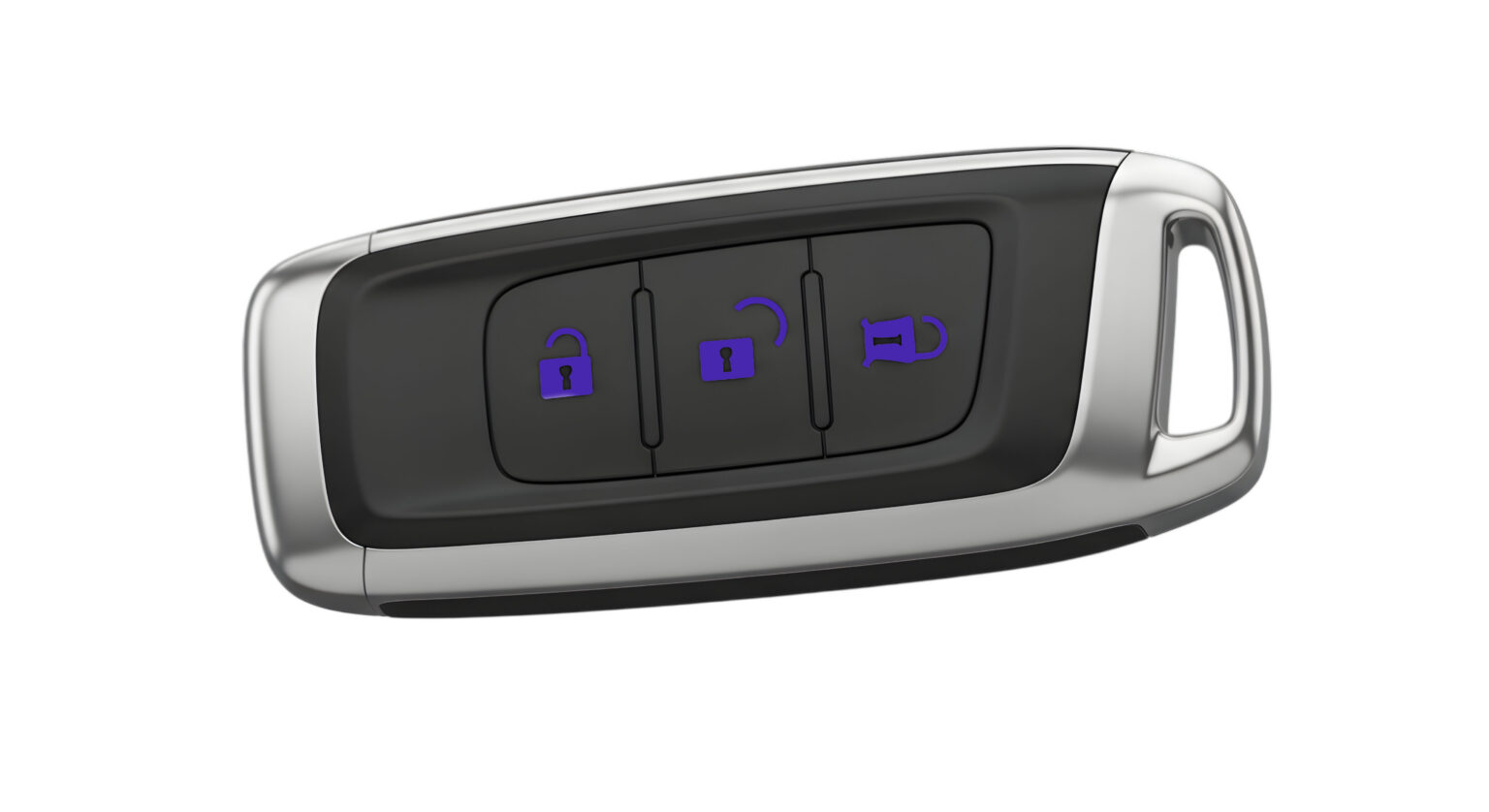

Key fob
- RF frequency: 433 MHz or 315 MHz
- RF modulation: FSK
- Flexible PCB supporting various button layouts
- 3D coils for PASE entry/start and immobilizer
- Personalization via unique ID
- Custom mechanical design
- Cost- and space-efficient with reusable PCB
- PCB size: 21mm x 62.17mm x 1.2mm
